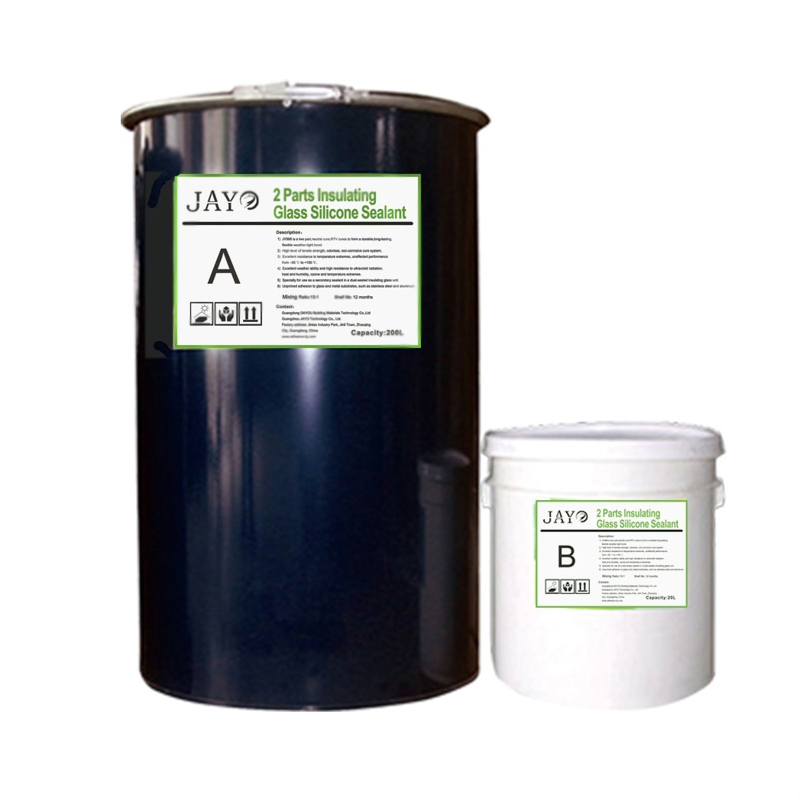

JY998 Two Component Insulating Glass Sealant

JY998 2 Part Insulating Glass Sealant is engineered as a specialized secondary sealing solution for residential insulating glass units. This two-component system demonstrates outstanding immediate adhesion without requiring surface preparation, featuring user-friendly processing characteristics that facilitate seamless integration with standard automated insulating glass manufacturing systems. The product enables streamlined production processes through its optimized application properties and rapid curing performance, effectively maximizing output efficiency while maintaining consistent quality in insulated glass assembly operations.

Quantity:
Availability:





Inquire Add to Basket

Product Advantage

Key Advantages of our product:

Dual-Pane System Edge Sealant

Provides structural edge bonding for double-pane insulating glass configurations

Automated Production Line Compatibility

Designed for seamless integration with modern insulating glass manufacturing equipment

Thermal Insulation Unit Assembly

Serves as critical secondary sealing component in thermal break glass unit fabrication

Two-Component Composite Formulation

Precision-engineered dual-part system ensuring consistent curing performance in hollow glass applications

Technical Parameters

Test Items		Technical Indicators GB29755-2013	Test Results	Remarks
Sag	Vertical Placement/mm	≤3	0	Qualified
Sag	Horizontal Placement	Zero	Zero	Qualified
Application time/min		≥20	30	Qualified
Surface Dry Time/h		≤3	1	Qualified
Hardness		20-60	48	Qualified
Heat&Aging Resistance	Thermal Weight Loss%	≤10	2.4	Qualified
	Crack	Zero	Zero	Qualified
	Chalking	Zero	Zero	Qualified
Tensile strength and elongation at normal condition	Tensile Strength at Ultimate Enlongation/ Mpa	≥0.6	1.19	Qualified
	Destruction area /%	≤5	0	Qualified
	Elongation at breake/%	≥100	101	Qualified
Tensile strength and elongation @90℃	Tensile Strength at Ultimate Enlongation/Mpa	≥0.45	0.82	Qualified
Tensile strength and elongation @90℃	Destruction area /%	≤5	0	Qualified
Tensile strength and elongation @-30℃	Tensile Strength at Ultimate Enlongation/Mpa	≥0.45	1.55	Qualified
Tensile strength and elongation @-30℃	Destruction area /%	≤5	0	Qualified
Tensile strength and elongation after immersion	Tensile Strength at Ultimate Enlongation/Mpa	≥0.45	1.11	Qualified
Tensile strength and elongation after immersion	Destruction area /%	≤5	0	Qualified
Tensile strength and elongation after exposure	Tensile Strength at Ultimate Enlongation/ (Mpa)	≥0.45	1.03	Qualified

Product Uses

Here are four specific application scenarios of Silicone Sealants:

For Commercial Construction Applications:

Hermetically sealed glazing systems designed for office towers, retail complexes, and institutional buildings.

For Advanced Solar Architectural Designs:

Specialized fenestration products integrating triple-pane configurations, low-E coatings, or frameless glass assemblies.

For Demanding Environmental Conditions:

High-performance insulating units maintaining structural integrity in tropical climates, indoor swimming pools, or industrial settings.

Product Operate Guide

Step 1: Make sure compatibility and adhesion between sealants and adhesive material before using.

Step 2: The sealant displays excellent adhesive effect in the clean environment with temperature of 4℃-40℃and Relative Humidity(RH)of40%-80%.

Step 3:Surface cleaning for bond substrates, clean up the dirt, grease and other contaminants, then affixedtemporary protective tape.

Step 4: According to the size you want, cut out sealant mouth.

Diameter of Gun nozzle should be smaller than the thickness ofthe sealant injection place, it makesnozzle can stretch into the 1/2 depth of the sealant injection place. Start to inject sealant whensubstrate surface is completely dry, Extrusion and injection of sealant shall be continuous ,whichmakes sure the extrusion of sealant is continuous and uniform cylinder, the move the gun slowly anduniformly, make sure the substrate interface is full of silicone sealant. Quick move is not allowed forthe gun, it will cases bubbles or holes.

Step 5: Decoration should be carried out when the injection is finished, and remove temporary protective tape.

1.Surface Cleaning

2.Affixed Tape

3.Sealant Mouth Cutting

4.Injection

5.Surface Fixing

6.Tape Remove

7.Finish

FAQ

FAQs

What is the precise mixing ratio requirement for the two components?

The system requires a fixed 10:1 base-to-catalyst ratio, critical for achieving proper cross-linking and long-term durability.
How quickly must the mixed material be used after dispensing?

The pot life is 45 minutes at standard workshop conditions (23°C, 50% RH), requiring efficient application within this window.
Can existing equipment be used for application, or is specialized machinery needed?

Compatible with standard two-component meter-mix dispensing systems, though equipment calibration is recommended for optimal performance.
Does the cured sealant retain flexibility under constant structural stress?

The engineered polymer matrix maintains elastic recovery through continuous thermal cycling and mechanical pressure variations.
