Product Advantage
Key Advantages of our product:

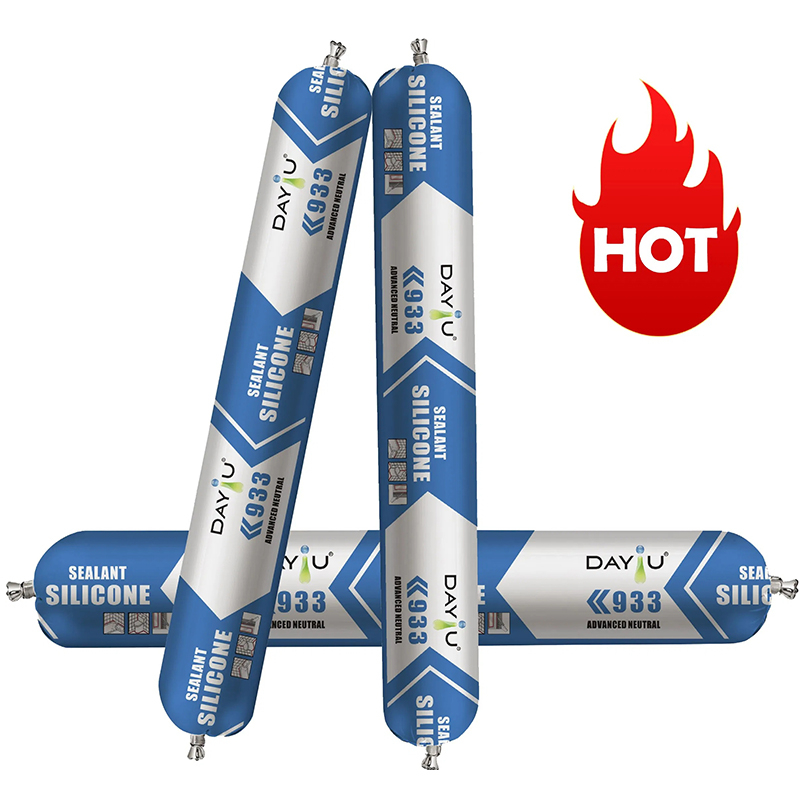

1.Sausage-Style Packaging
Supplied in convenient sausage packs for efficient use with standard dispensing equipment, minimizing waste.
2.Professional-Grade Formulation
Engineered to meet the demanding requirements of architectural sealing and industrial applications.
3.Architectural Glazing Systems
Specifically designed for weather-tight sealing in curtain wall assemblies and structural glazing applications.
4.Advanced Neutral-Cure Chemistry
Ensures material compatibility without corrosive byproducts, protecting sensitive building surfaces.
Technical Parameters
Test Items | Technical Indicators GB/T14683-2017 | Test Results | Remarks | ||
Appearance | Appearance:Fine uniform paste, no bubbles,no caking.No gel, no crust,no undispersed precipitates | Appearance:Fine uniform paste, no bubbles,no caking.No gel, no crust,no undispersed precipitates | Qualified | ||
Extrusion(ml/min)s | ≥80 | 355/min | Qualified | ||
Surface Dry Time/h | ≤3 | 0.7 | Qualified | ||
Elastic recovery rate | ≥80 | 96 | Qualified | ||
Mass loss rate | ≤8 | 2.1 | Qualified | ||
Sag | Vertical Placement/mm | ≤3 | 0 | Qualified | |
Horizontal Placement | Not deformed | Not deformed | Qualified | ||
23℃ Tensile Modulus | Tensile Strength/MPa | ＞0.4 | 1.13 | Qualified | |
Destruction Area% | ≤5 | 0 | Qualified | ||
Constant elongation bonding | Bonding Destruction Area% | ≤5 | 0 | Qualified | |
Adhesion after ultraviolet radiation | Bonding Destruction Area% | ≤5 | 0 | Qualified | |
Constant elongation after immersion in water | Bonding Destruction Area% | ≤5 | 0 | Qualified | |
Conclusion | The batch of products detected by the judge: （ ﹀ ）Qualified （ ）Unqualified | ||||
Product Uses
Application
Sealing and waterproofing around windows and doors.
Mainly used for caulking and sealing of aluminum panels, stone, glass curtain walls, advanced doors and windows, canopies, etc.
Caulking sealing for general glass and most materials. Good compatibility with metal, glass, ceramics, non-oily wood, concrete, and other building substrates.
Product Operate Guide
Step 1: Make sure compatibility and adhesion between sealants and adhesive material before using.
Step 2: The sealant displays excellent adhesive effect in the clean environment with temperature of 4℃-40℃and Relative Humidity(RH)of40%-80%.
Step 3:Surface cleaning for bond substrates, clean up the dirt, grease and other contaminants, then affixedtemporary protective tape.
Step 4: According to the size you want, cut out sealant mouth.
Diameter of Gun nozzle should be smaller than the thickness ofthe sealant injection place, it makesnozzle can stretch into the 1/2 depth of the sealant injection place. Start to inject sealant whensubstrate surface is completely dry, Extrusion and injection of sealant shall be continuous ,whichmakes sure the extrusion of sealant is continuous and uniform cylinder, the move the gun slowly anduniformly, make sure the substrate interface is full of silicone sealant. Quick move is not allowed forthe gun, it will cases bubbles or holes.
Step 5: Decoration should be carried out when the injection is finished, and remove temporary protective tape.
1.Surface Cleaning
2.Affixed Tape
3.Sealant Mouth Cutting
4.Injection
5.Surface Fixing
6.Tape Remove
7.Finish
