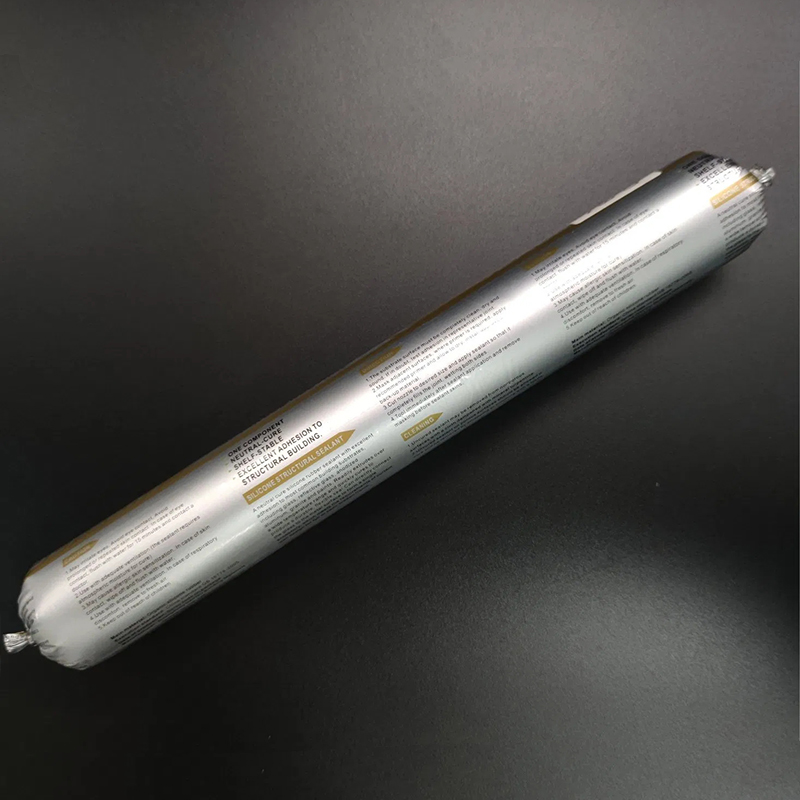

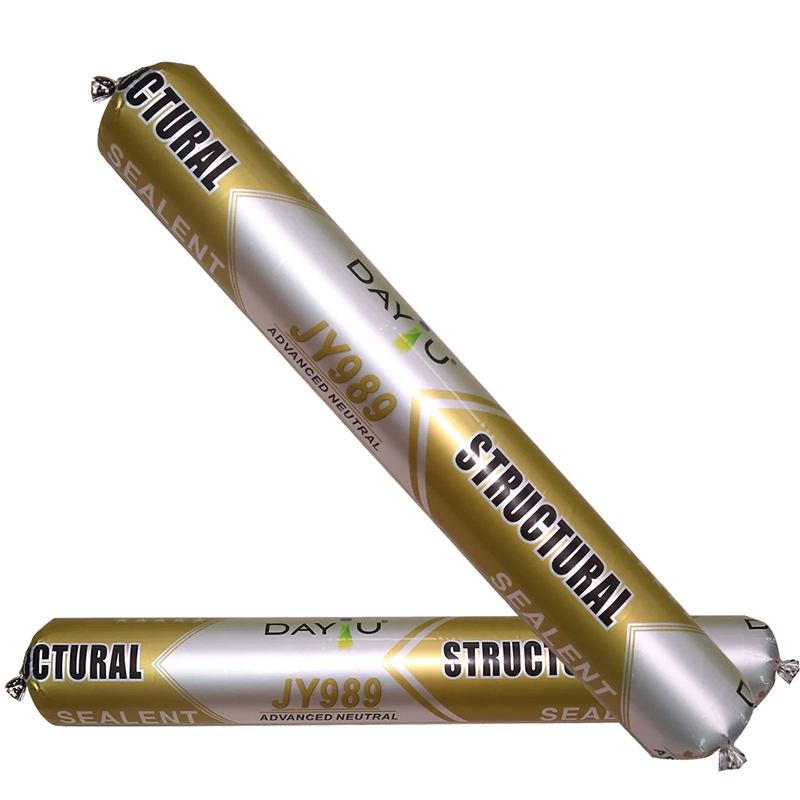

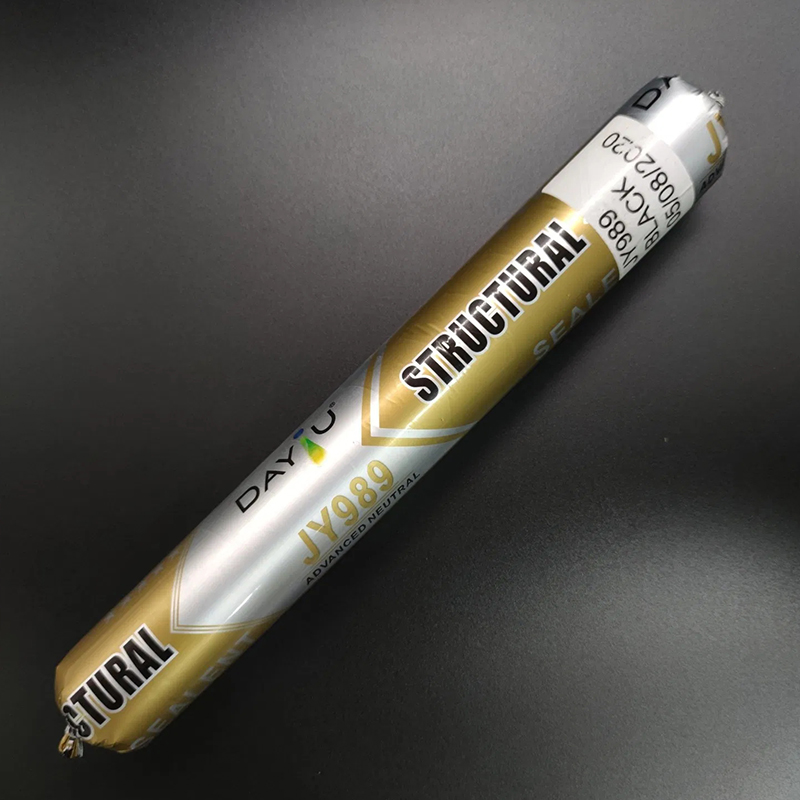

JY989 Structural Sausage Sealant

JY989 Structural Glazing Sausage Sealant is a neutral-curing elastomer specifically engineered for demanding architectural applications. This high-modulus formulation demonstrates exceptional durability against weathering factors and maintains stable performance under prolonged UV exposure. It possesses superior tensile strength and enhanced mechanical characteristics, ensuring reliable structural bonding in curtain wall systems, glass assemblies, and composite material installations. The sealant delivers consistent performance in critical load-bearing applications where long-term structural integrity and resistance to environmental stresses are essential requirements.

Quantity:
Availability:





Inquire Add to Basket

Product Advantage

Key Advantages of our product:

Packaging for Structural Applications

Specifically designed in sausage format for high-volume structural glazing projects, ensuring continuous workflow and consistent bead formation

Structural Bonding for Glass Curtain Walls

Provides permanent structural attachment of glass panels in unitized curtain wall systems without mechanical fasteners

High-Strength Aluminum Frame Integration

Creates durable structural connections between glass and aluminum framing components in building facades

Advanced Building Curtain Wall Solutions

Engineered for complex curtain wall assemblies requiring long-term structural integrity and weather performance

Exceptional Resistance to Structural Displacement

Maintains bond integrity under significant wind load and building movement in high-rise applications

Technical Parameters

Test Items		Technical Indicators GB16776-2005	Test Results	Remarks
Extrusion(ml/min)s		≤10	3	Qualified
Surface Dry Time/h		≤3	2.0	Qualified
Hardness		20-60	34	Qualified
Sag	Vertical Placement/mm	≤3	0	Qualified
Sag	Horizontal Placement	Zero	Zero	Qualified
Heat&Aging	Thermal Weight Loss%	Zero	Zero	Qualified

Resistance

crack

Zero

Qualified

chalking

Zero

Qualified

tensile strength and elongation at normal condition

Tensile Strength at Ultimate Enlongation/Mpa

≥0.6

1.38

Qualified

Destruction area /%

≤ 5

0

Qualified

Elongation at breake/%

≥100

413

Qualified

tensile strength and elongation @90℃

Tensile Strength at Ultimate

Enlongation/Mpa

≥0.45

0.83

Qualified

Destruction area /%

≤5

0

Qualified

tensile strength and elongation

@-30℃

Tensile Strength at Ultimate

Enlongation/Mpa

≥0.45

1.83

Qualified

Destruction area /%

≤5

0

Qualified

tensile strength and elongation after immersion

Tensile Strength at Ultimate

Enlongation/Mpa

≥0.45

1.34

Qualified

Destruction area /%

≤5

0

Qualified

tensile strength and elongation after exposure to UV

Tensile Strength at Ultimate

Enlongation/Mpa

≥0.45

1.23

Qualified

Destruction area /%

≤5

0

Qualified

tensile strength@23

℃

Tensile Strength at enlongation

of %10(Mpa)

/

0.19

Qualified

Tensile Strength at

enlongation of%20(Mpa)

/

0.30

Qualified

Tensile Strength at enlongation

of %40(Mpa)

/

0.43

Qualified

Product Uses

Here are four specific application scenarios of Silicone Sealants:

For the situation of high requirement to adhesive safety and other purpose.

Can be used for structural glazing and sealing for glass, stone, aluminum panel curtain wall and secondary seal of insulating glass.

Used in structural glazing,sealing and bonding in building construction and technical/industrial applications.

Product Operate Guide

Step 1: Make sure compatibility and adhesion between sealants and adhesive material before using.

Step 2: The sealant displays excellent adhesive effect in the clean environment with temperature of 4℃-40℃and Relative Humidity(RH)of40%-80%.

Step 3:Surface cleaning for bond substrates, clean up the dirt, grease and other contaminants, then affixedtemporary protective tape.

Step 4: According to the size you want, cut out sealant mouth.

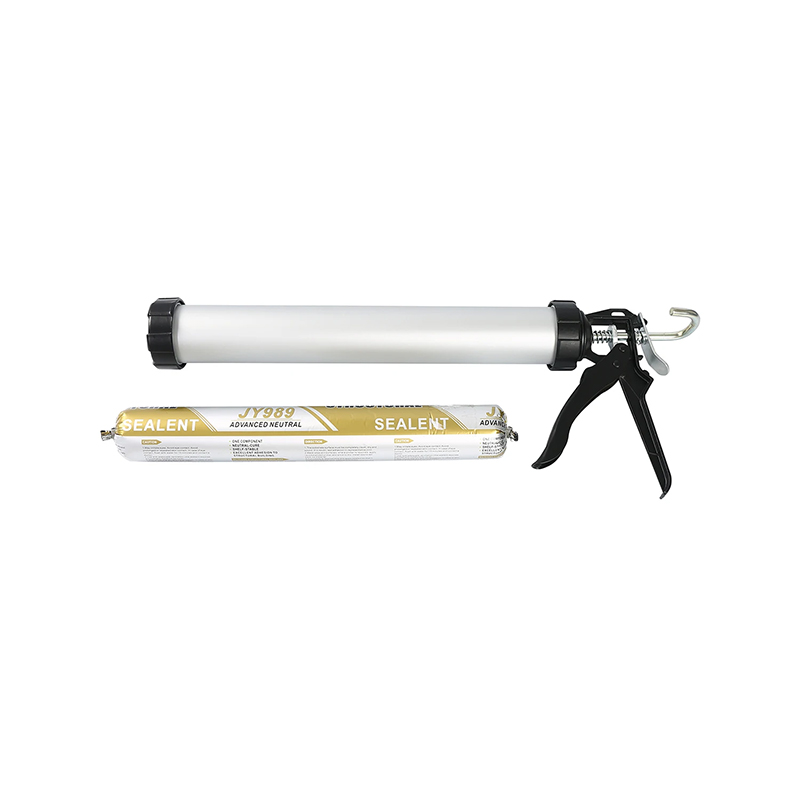

Diameter of Gun nozzle should be smaller than the thickness ofthe sealant injection place, it makesnozzle can stretch into the 1/2 depth of the sealant injection place. Start to inject sealant whensubstrate surface is completely dry, Extrusion and injection of sealant shall be continuous ,whichmakes sure the extrusion of sealant is continuous and uniform cylinder, the move the gun slowly anduniformly, make sure the substrate interface is full of silicone sealant. Quick move is not allowed forthe gun, it will cases bubbles or holes.

Step 5: Decoration should be carried out when the injection is finished, and remove temporary protective tape.

1.Surface Cleaning

2.Affixed Tape

3.Sealant Mouth Cutting

4.Injection

5.Surface Fixing

6.Tape Remove

7.Finish

FAQ

Is this product compatible with coated glass and low-E surfaces?

It demonstrates excellent compatibility with most coated glass surfaces without causing discoloration or adhesion issues.
What documentation supports structural performance claims?

We provide comprehensive technical data sheets, third-party test reports, and calculation methods for engineering verification.
How does the product resist heat buildup in dark colors?

The specialized black pigment maintains stability under thermal cycling up to 150°C without degradation.
Can it interface with other structural sealant systems?

While designed as a complete system, it demonstrates compatibility with most neutral-cure structural silicone sealants.
